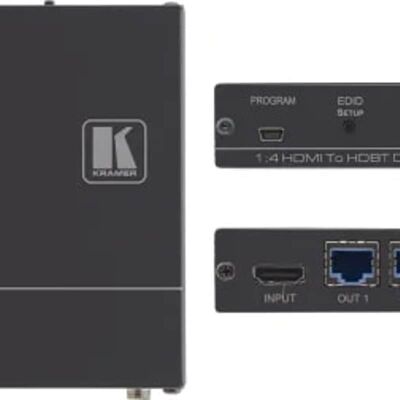

Kramer VM-4HDT Distribution Amplifier

Kramer VM-4HDT Distribution Amplifier VM-4HDT is a high quality 4K UHD 1:4 distribution amplifier with one HDMI input including IR and RS-232 control signals, which distributes the signal to four identical HDBaseT outputs after equalization and re-clocking. The VM-4HDT distributes signals with resolutions up to 4K @60 Hz (4:2:0) including WUXGA and 1080p. The TP-580R, for example, serves as a compatible receiver. Features High-performance distribution - One HDMI signal with up to 4K resolution is distributed to four HDBaseT outputs for long distances Distributor with extension standard compatibility - works with any standard HDBaseT device on the market HDMI signal transmission Intelligent EDID Editing (Kramer, s I-EDIDPro ) - An intelligent algorithm for EDID management and editing ensures plug and play operation for HDMI sources and display systems Kramer, s re-Klocking - and equalization technology - Rebuilds the digital signal to cover greater distances Easy installation Technical Data Input: 1x HDMI Outputs: 4x HDBaseT on RJ-45 socket Data: 1x IR via 3,5mm jack / 1x RS-232 via 3pin screw terminal Max. Data rate: 10.2 GBit/s (3.4 GBit/s per graphics channel) Max. Video resolution: 4K @60 Hz (4:2:0) 24 bpp Compliance: HDMI 2.0, HDCP 1.4 and HDBaseT 1.0 HDMI support: Deep Color, x.v.Color , Lip Sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0 Range: 40m (with 4K @ 60 Hz) / 70m (with 1080p @ 60 Hz) Control: EDID Set-Up button, 12 Set-Up DIP switches, LED indicators: Outputs 1 - 4, Link 1 - 4, active input, power Display LEDs: OUTPUTS 1-4, LINK 1-4, active input, power on Operating temperature: 0 to +40 °C Storage temperature: -40 to +70 °C Rel. humidity: 10 to 90 %, non-condensing Power supply: 5.2 VDC, 4 A Power requirements: 5 VDC, 800 mA Housing: aluminum, MegaTOOL size Cooling: Fan Dimensions (WxDxH): 188 x 115 x 25 mm Weight: 0,5 kg
